VCN series in five versions

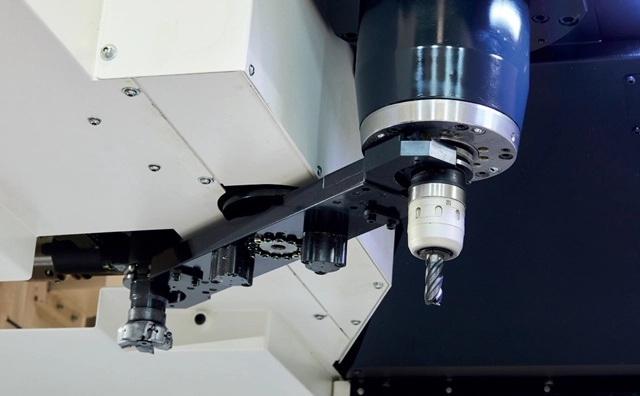

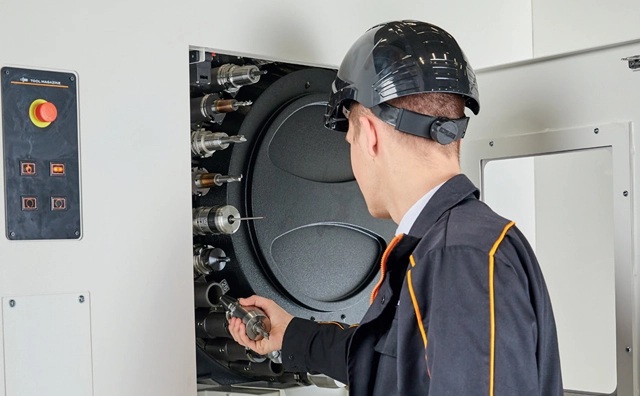

The Mazak VCN series is available in several versions, aimed at vertical machining applications where table size, axis travel, spindle specification and tool capacity determine the best fit. The range includes BT40 machines with higher spindle speed and BT50 machines with more torque for heavier cutting. The series is positioned for heavy-duty machining, dynamic machining, a large working area, high-rigidity construction and automation-ready production.

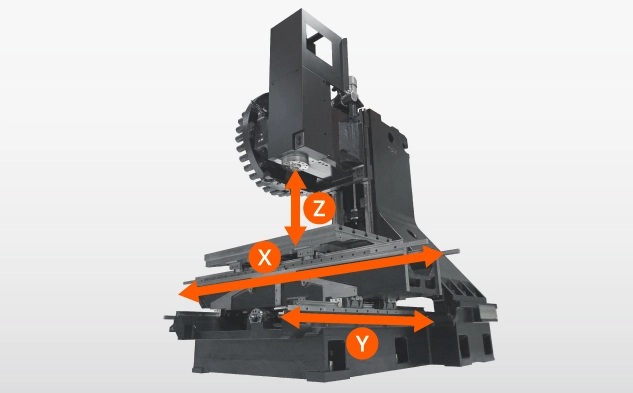

| Type | X range | Y range | Z range | Max. spindle speed | Tool shank | Table size | Max. table load |
|---|---|---|---|---|---|---|---|
| VCN-500 | 800 mm | 500 mm | 550 mm | 15,000 min⁻¹ | CAT No.40 | 1,050 × 500 mm | 750 kg |
| VCN-535C | 1,050 mm | 530 mm | 560 mm | 8,000 min⁻¹ | BT50 | 1,300 × 550 mm | 1,200 kg |
| VCN-600 | 1,050 mm | 600 mm | 600 mm | 15,000 min⁻¹ | CAT No.40 | 1,300 × 600 mm | 1,200 kg |
| VCN-700 | 1,300 mm | 700 mm | 650 mm | 15,000 min⁻¹ | CAT No.40 | 1,500 × 700 mm | 1,800 kg |
| VCN-700D | 1,530 mm | 700 mm | 650 mm | 8,000 min⁻¹ | BT50 | 1,740 × 700 mm | 2,000 kg |
VCN-500
The VCN-500 is the most compact model in this selection. It offers 800 mm X-axis travel, 500 mm Y-axis travel and 550 mm Z-axis travel. With a 15,000 min⁻¹ spindle and CAT No.40 tool shank, it is suited to high-speed vertical machining where floor space and productivity are important. The table measures 1,050 × 500 mm and supports workpieces up to 750 kg.
VCN-535C
The VCN-535C takes a different position in the range. It uses a BT50 spindle and has a maximum spindle speed of 8,000 min⁻¹. Compared with the CAT No.40 models, it is aimed more at applications where tool rigidity and torque are important. The machine offers 1,050 mm X-axis travel, 530 mm Y-axis travel and 560 mm Z-axis travel, with a 1,300 × 550 mm table and a maximum loading weight of 1,200 kg.
VCN-600
The VCN-600 expands the working area while keeping the high-speed CAT No.40 spindle configuration. Its axis travel is 1,050 mm in X, 600 mm in Y and 600 mm in Z. The 15,000 min⁻¹ spindle makes it suitable for dynamic machining, while the 1,300 × 600 mm table and 1,200 kg load capacity give it more room for larger components than the VCN-500.

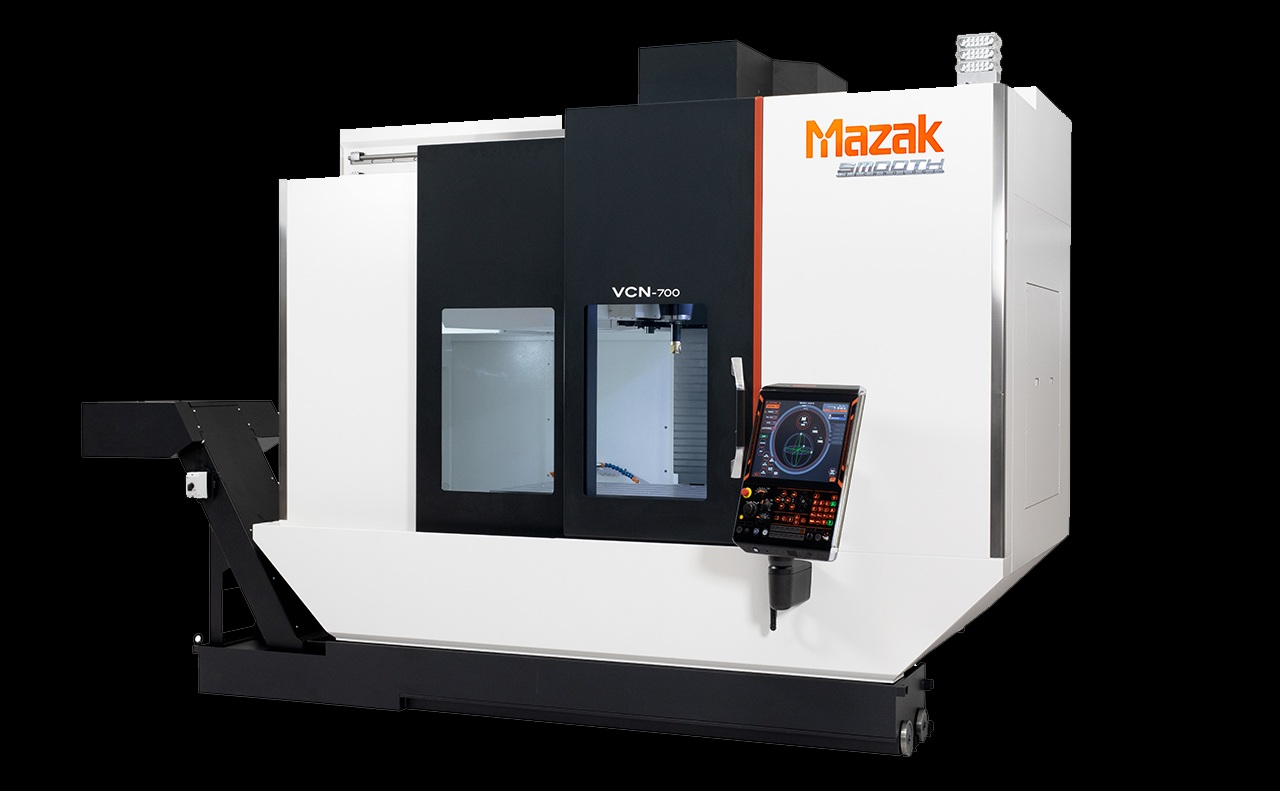

VCN-700
The VCN-700 is the larger CAT No.40 version in the VCN line-up. It combines a 15,000 min⁻¹ spindle with 1,300 mm X-axis travel, 700 mm Y-axis travel and 650 mm Z-axis travel. The table size increases to 1,500 × 700 mm, with a maximum loading weight of 1,800 kg. This places the machine in a higher capacity range for manufacturers that need more travel but still want the speed of a CAT No.40 spindle.
VCN-700D
The VCN-700D is the largest and heaviest-duty model in this overview. It uses a BT50 spindle with a maximum speed of 8,000 min⁻¹ and offers the longest X-axis travel in the series at 1,530 mm. The Y and Z ranges are 700 mm and 650 mm. Its 1,740 × 700 mm table supports up to 2,000 kg, making it the strongest option in this group for larger and heavier workpieces.
More information about the Mazak VCN series is available here.
